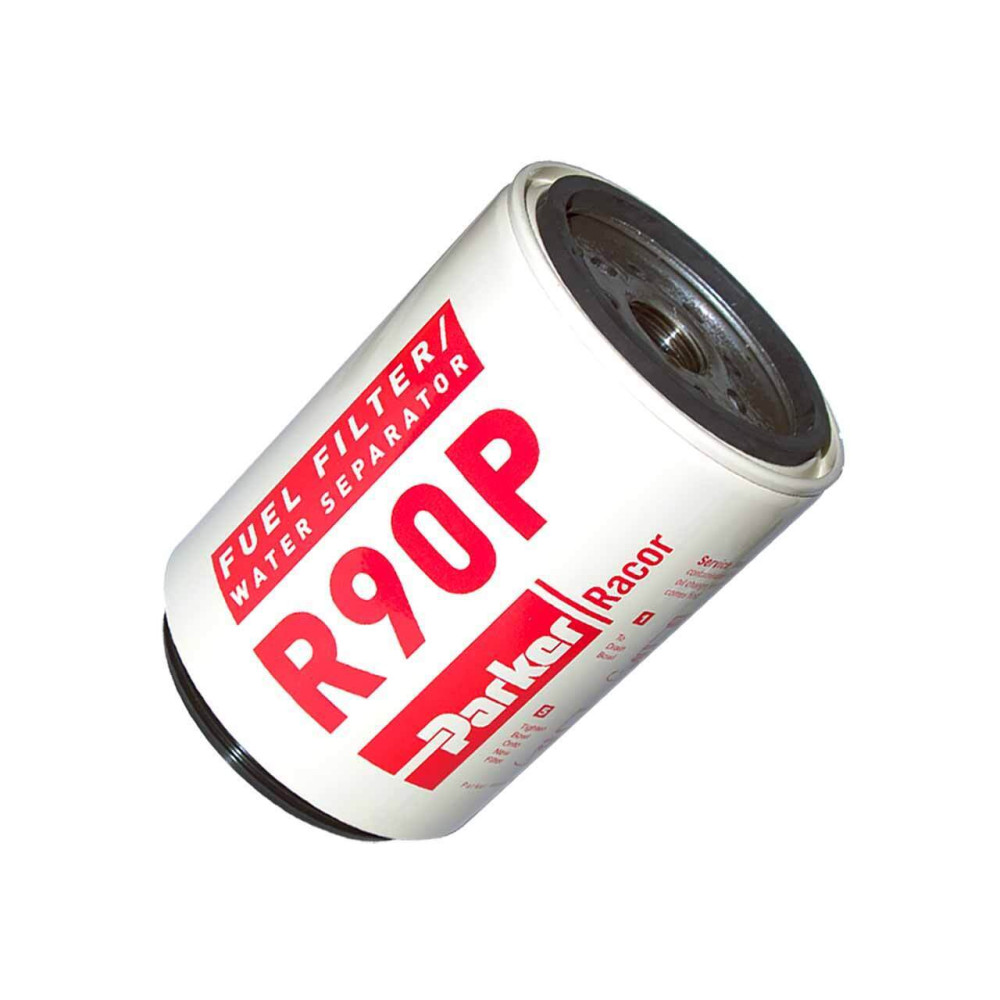

Parker Racor Fuel Filter/Water Separator R90P

Racor R90P Fuel Filter / Water Separator
30 Micron Replacement Element

A 30 micron element from the 490R & 690R Series. The Racor Spin-On Series is available in a wide range of size and flow rate capabilities, using engineered media to increase the dirt holding capacity and extend filter life. The Aquabloc treated paper, stops all water from going through the filter. The waterproof, rustproof and dirt proof Aquabloc media undergoes a water repelling treatment process that simultaneously separates and coalesces, forming heavy water droplets that collect into the filter bowl.

Specifications:
Filter Housing Series: 490R & 690R
Micron Rating: 30
Port/Connector Size: 1"-14 Center Thread
Max. Flow Rate: 90 GPH (170 LPH)
Outside Diam: 108mm
Element Height: 144mm

Bowl & Drain Valve (RK30476) sold separately.
